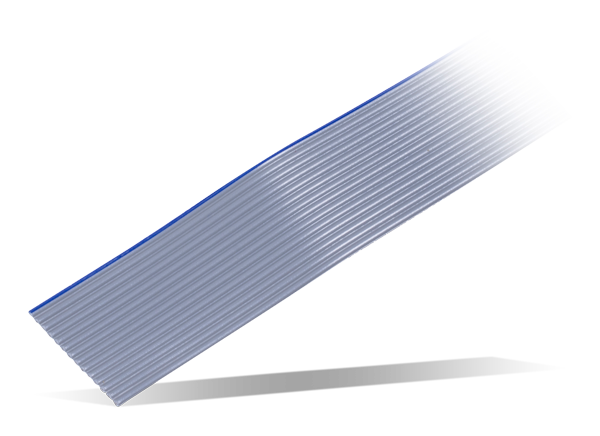

3M HF365 Halogen-Free Cables offer a 300V voltage rating, 28AWG stranded conductors, and a 100Ω impedance. The HF365 halogen-free cables permit mass termination to a broad line of IDC connectors. 3M HF365 cables are zippable for branching or discrete termination and available in both 100ft and 300ft lengths.
300V for USA
150V for Canada
<50V for EU
>1× 1010Ω insulation resistance per 10ft (3m)
15.0pF/ft (49.2pF/m) unbalanced
8.4pF/ft (27.7pF/m) balanced
100ft and 300ft cable length range
0.15μH/ft (0.49μH/m) unbalanced
0.24μH/ft (0.79μH/m) balanced
1.51ns/ft (4.95ns/m) unbalanced
1.42ns/ft (4.66ns/m) balanced
Velocity of propagation
6x to 64x conductors
3M Round Conductor Halogen Free Flat Cables
Provides low smoke, low gas toxicity and reduced soot damage to equipment.
