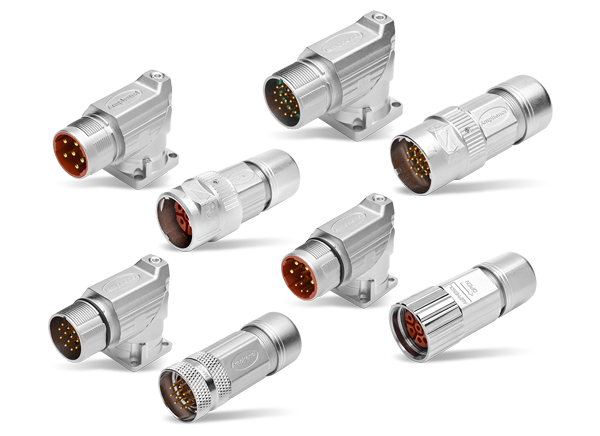

Amphenol Sine Systems M23 Elite Threaded and Checkmate™ Connectors
Amphenol Sine Systems M23 Elite Threaded and Checkmate™ Connectors are designed with expanded connector options and are compatible with other industry-standard products. The connectors feature a next-generation single PC design, loose-PC insert assembly, ground protection, top-loading design, Checkmate coupling, and 360° shielding. Amphenol M23 elite connectors are available in 6, 8, 9, 12, 16, and 17 positions. These connectors do not require any extraction tools for power inserts.
Features
- Checkmate™ coupling
- Compatible with other industry-standard products
- Next-generation single-piece design
- Cost-effective series
- Faster assembly and fewer components
- Compact design
- Top-loading design
- Clamshell insert for contact insertion
- Alignment keys for guided assembly
- Rubber cord grips
- Grounding rings
- No extraction tools required
- Loose-piece insert assembly
- Ground protection
- Industry-standard insert design
- 360° shielding
