Amphenol Commercial OSFP Interconnect System

Amphenol Commercial OSFP Interconnect System features 60 contacts per port, with a 0.6mm contact pitch, and eight high-speed channels. The OSFP footprint is optimized for signal integrity performance and is built for use in high-speed serial applications. This Amphenol Commercial interconnect system is enhanced for low crosstalk and offers ground commoning for resonance dampening. The module side features an integrated heat sink for optimal thermal performance. The OSFP series is designed for 1U applications, including cellular infrastructure, hubs, switches, servers, and more.


  • Enables 25Gb/s NRZ and 56Gb/s PAM4 per channel transmission
    • 200G / 400G aggregate bandwidth capacity

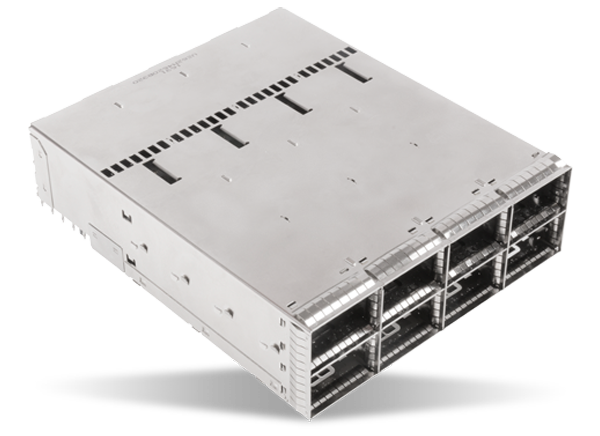

  • Compatible with all mating connector and cage configurations: single port, ganged, and stacked
  • System design enables up to 16W per port independent of cage configuration
  • Advanced internal ground features provide improved crosstalk performance over QSFP28
  • Designed with considerations to support next-generation operating speeds: 112Gb/s PAM4
  • Part of Amphenol’s overall OSFP interconnect system
  • RoHS compliant


  • Cellular infrastructure
  • Network interface cards
  • Hubs
  • Switches
  • Storage systems
  • Servers
  • Test and measurement equipment


  • Operating current
    • 0.5A per signal contact
    • 1.5A per low-speed power contact
  • 100Ω ±10Ω differential impedance
  • 250 mating cycles durability
  • 30VDC operating voltage per contact


Amphenol Commercial OSFP Interconnect System
Published: 2019-04-16 | Updated: 2023-04-28
