Amphenol RF SMA Panel-Mount Receptacles

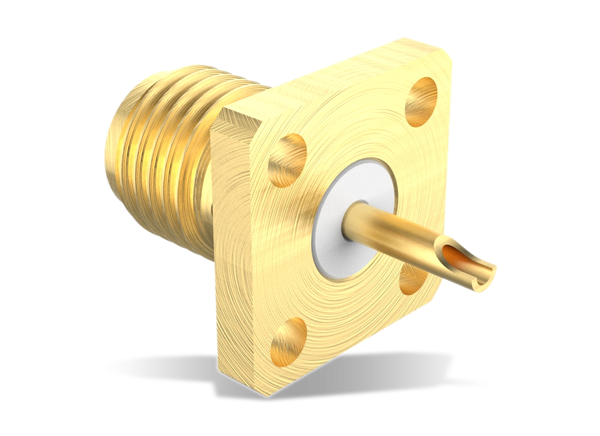

Amphenol RF SMA Panel-Mount Receptacles offer superior VSWR performance up to 18GHz and come in 2-hole and 4-hole flange configurations. These receptacles include a stainless steel body with passivated or gold finish. The termination option includes post contacts with extended polytetrafluoroethylene (PTFE) insulators as well as a solder cup, tab, and slotted contacts. The series operates in a -65°C to +105°C temperature range and offers 50Ω impedance and 5000MΩ insulation resistance. Amphenol RF SMA Panel-Mount Receptacles are ideal for use in attenuators, couplers, detectors, microwave filters, solid-state switches, and RF amplifiers.
Features
- 2-hole and 4-hole flanges configurations
- Stainless steel, passivated, or gold-plated body
- Beryllium copper and gold-plated contacts
- PTFE insulator
Applications
- RF amplifiers
- Attenuators
- Couplers
- Detectors
- Microwave filters
- Power dividers and combiners
- Receivers and transceivers
- Solid-state switches
Specifications
- DC to 18GHz frequency range
- 50Ω impedance
- 1.15:1 maximum VSWR (except solder cup)
- 2mΩ contact resistance
- 5000MΩ insulation resistance
- -65°C to +105°C operating temperature range
