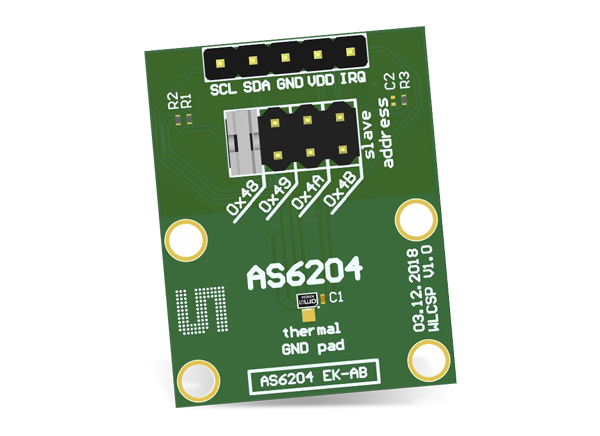

ams OSRAM AS6204-EK Adapter Board evaluates AS6204 digital temperature sensors without designing a custom printed circuit board. AS6204 sensor targets consumer applications such as laptops, cameras, and tablets. The board features a digital temperature sensor, a decoupling capacitor, and pull-up resistors. A jumper is included to set the ams AS6204-EK Adapter Board's four I2C addresses. A 5x1 pin header with a 2.54mm pitch enables the adapter board's connection to an application processor.
Digital temperature sensors
5x1 pin header
ams OSRAM AS6204 IC Digital Temperature Sensor
Targets consumer applications such as laptops, cameras, and tablets.
