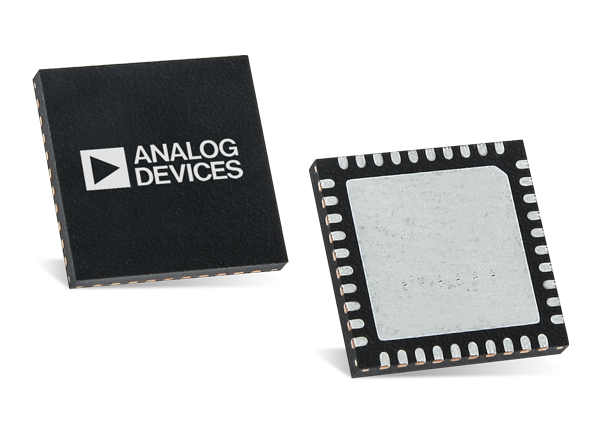

Analog Devices Inc. AD8432 Dual-Channel Ultralow Noise Amplifier

Analog Devices Inc. AD8432 Dual-Channel Ultralow Noise Amplifier features low-power, ultralow noise with selectable gain and active impedance matching. Each channel has a single-ended input, differential output, and integrated input clamps. By pin strapping the gain setting pins, four accurate gains of G = 12.04dB, 18.06dB, 21.58dB, and 24.08dB (×4, ×8, ×12, and ×16, respectively) are possible. A bandwidth of 200MHz at G = 12.04dB makes this amplifier ideal for many high speed applications. The exceptional noise performance of the AD8432 is made possible by the active impedance matching. Using a feedback network, the input impedance of the amplifiers can be adjusted to match the signal source impedance without compromising the noise performance. Impedance matching and low noise in the AD8432 allow for creating wider dynamic range systems that can detect even very low level signals.


  • Low noise
    • Input voltage noise: 0.85nV/√Hz
    • Current noise: 2.0pA/√Hz
  • High speed
    • 200MHz bandwidth (G = 12.04dB)
    • 295V/μs slew rate
  • Selectable gain G = 12.04dB (×4)
    • G = 18.06dB (×8)
    • G = 21.58dB (×12)
    • G = 24.08dB (×16)
  • Active input impedance matching
  • Integrated input clamp diodes
  • Single-ended input, differential output
  • Supply range: 4.5V to 5.5V
  • Low power: 60mW/channel


  • CW Doppler ultrasound front ends
  • Low noise preamplification
  • Predriver for I/Q demodulators and phase shifters
  • Wideband analog-to-digital drivers

Block Diagram

Block Diagram - Analog Devices Inc. AD8432 Dual-Channel Ultralow Noise Amplifier
