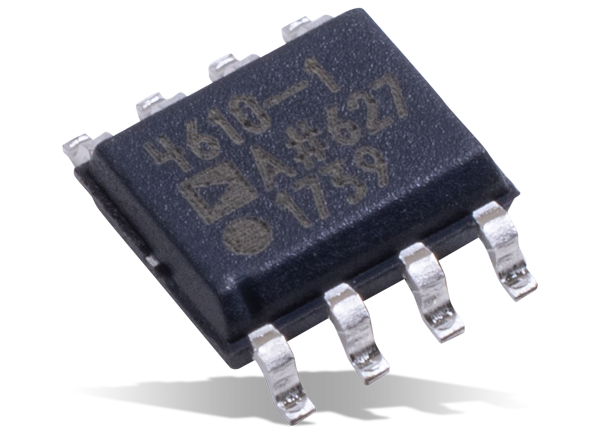

Analog Devices Inc. ADA4610-1 Precision Amplifiers
Analog Devices ADA4610-1 Precision JFET Input Single Amplifiers offer low input noise voltage, current noise, offset voltage, input bias current, and rail-to-rail output. The design makes the ADA4610-1 amplifiers especially well-suited for high impedance sensor amplification and precise current measurements using shunts. With excellent dc precision, low noise, and fast settling time, the ADA4610-1 delivers superior accuracy in medical instruments, electronic measurement, and automated test equipment.
The ADA4610-1 maintains fast settling performance with substantial capacitive loads. In addition, the ADA4610-1 does not suffer from output phase reversal when input voltages exceed the maximum common-mode voltage range. The fast slew rate and great stability with capacitive loads make the ADA4610-1 ideal for high-performance filters. Low input bias currents, low offset, and low noise result in a wide dynamic range for photodiode amplifier circuits. Low noise and distortion, high output current, and excellent speed make the ADA4610-1 ideally suited for audio applications.
Features
- Low offset voltage
- B grade: 0.4mV maximum
- A grade: 1mV maximum
- Low offset voltage drift
- B grade: 4μV/°C maximum
- A grade: 8μV/°C maximum
- Low input bias current: 5pA typical
- Dual-supply operation: ±5V to ±15V
- Low voltage noise: 0.45μV p-p at 0.1Hz to 10Hz
- Voltage noise density: 7.30nV/√Hz at f=1kHz
- Low total harmonic distortion (THD)+ noise: 0.00025%
- No phase reversal
- Rail-to-rail output
- Unity-gain stable
Applications
- Instrumentation
- Medical instruments
- Multipole filters
- Precision current measurement
- Photodiode amplifiers
- Sensors
- Audio
Evaluation Boards
Analog Devices Inc. EVALPRAOPAMPx Universal Op Amp Eval Boards
Helps designers evaluate the features & capabilities of single op-amps in a wide range of packages.
Associated Products
Analog Devices Inc. ADA4610-2 Precision Dual Amplifiers
Low Noise, Precision, Rail-to-Rail Output, JFET Dual Op Amplifiers.
Analog Devices Inc. ADA4610-4 Precision Quad Amplifiers
Low noise, precision, rail-to-rail output, JFET quad operational amplifiers.
