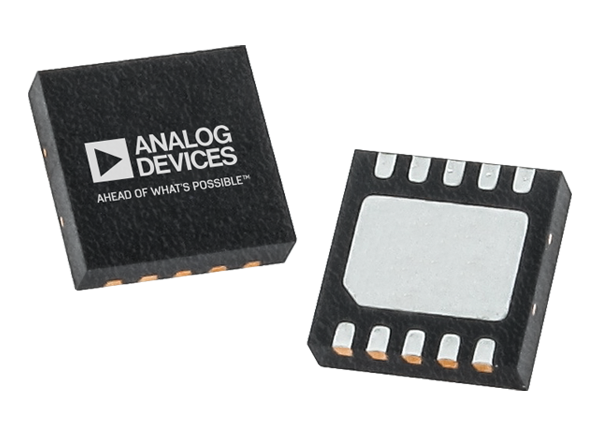

Analog Devices Inc. ADG5421F Dual SPST Switch
Analog Devices Inc. ADG5421F Dual SPST Switch is a low on-resistance switch that features overvoltage protection, power-off protection, and overvoltage detection on the source pins. This switch remains in the off condition when no power supplies are present and the switch inputs have high impedance. The ADG5421F switch turns on with a Logic 1 input and conducts equally well in both directions. This switch features up to ±60V overvoltage fault protection and power-off protection on S1 and S2 pins. The ADG5421F switch is latch-up immune under all circumstances. Typical applications include analog input and output modules, process control and distributed control systems, data acquisition, instrumentation, avionics, automatic test equipment, communication systems, and relay replacement.
Features
- Over-Voltage Protection (OVP)
- Power-off protection
- Known state without digital inputs present
- Trench isolation guards against latch-up
- Turns on with a Logic 1 input
- Conducts equally well in both directions
Specifications
- Up to ±60V overvoltage fault protection on the S1 and S2 pins
- Up to ±60V power-off protection on S1 and S2 pins
- 11Ω low on-resistance (typical)
- 3.5kV Human Body Model (HBM) ESD rating
- 3mm × 2mm 10-lead Lead-Frame Chip Scale Package (LFCSP)
Applications
- Analog input and output modules
- Process control and distributed control systems
- Data acquisition
- Instrumentation
- Avionics
- Automatic test equipment
- Communication systems
- Relay replacement
Associated Dev Tools
Analog Devices Inc. EVAL-ADG5421FEBZ Evaluation Board
Allows users to evaluate the ADG5421F Dual SPST Switch, which features two SPST switch channels.
Analog Devices Inc. EVAL-CN0584-EBZ Low Latency Development Kit (LLDK)
A dev platform including 4 x 16-bit ADC & DAC channels interfaced with an FPGA via LPC connector.
Functional Block Diagram
Switch Channel Overview
Performance Graph
Published: 2020-12-01
| Updated: 2023-06-09
