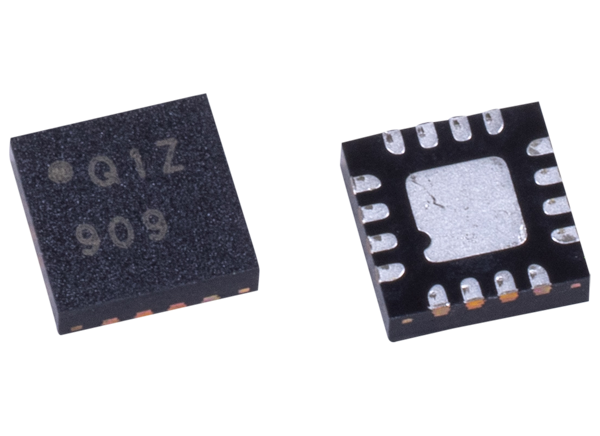

Analog Devices Inc. ADL5565 6GHz Differential Amplifier

Analog Devices Inc. ADL5565 6GHz Differential Amplifier offers low noise of 1.5nV/√Hz and excellent distortion performance over a wide frequency range making it an ideal driver for high speed 8-bit to 16-bit analog-to-digital converters.

ADI ADL5565 provides three gain levels of 6dB, 12dB, and 15.5dB through a pin strappable configuration. The quiescent current of the ADL5565 is typically 70mA and when disabled consumes less than 5mA with −25dB of input-to-output isolation at 100MHz. The device is optimized for wideband, low distortion, and noise performance, giving it unprecedented performance for overall spurious-free dynamic range.

These attributes together with its adjustable gain capability make this device an ideal amplifier for driving a wide variety of ADCs, mixers, pin diode attenuators, SAW filters, and multi-element discrete devices.

Features

3dB bandwidth of 6GHz (AV = 6dB)
Pin strappable gain adjust of 6dB, 12dB, and 15.5dB
Gain range from 0dB to 15.5dB using two external resistors
Differential or single-ended input to differential output
Low noise input stage: NF = 8.7dB at 15.5dB gain
IMD3 of −112dBc at 100MHz center
Slew rate of 11V/ns
Fast settling and overdrive recovery of 2ns

Low broadband distortion (AV = 6dB)
- 10MHz: −107dBc (HD2), −110dBc (HD3)
- 100MHz: −108dBc (HD2), −103dBc (HD3)
- 200MHz: −82dBc (HD2), −87dBc (HD3)
- 500MHz: −68dBc (HD2), −63dBc (HD3)
Single-supply operation of 2.8V to 5.2V
Power down
Fabricated using the high speed XFCB3 SiGe process
