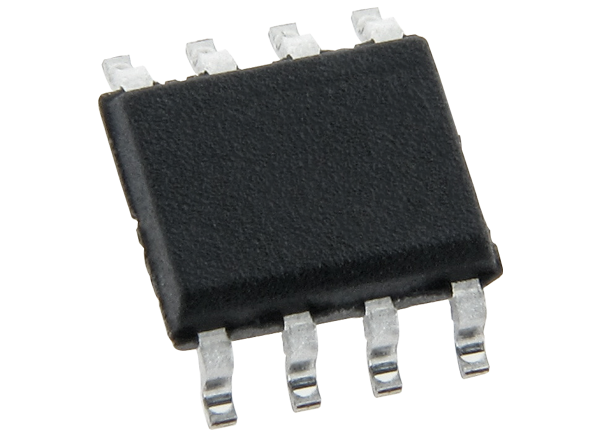

Analog Devices Inc. ADR45xx Voltage References
Analog Devices Inc. ADR45xx Voltage References are high precision, low power voltage references. The series offers a ±0.02% maximum initial error, excellent temperature stability, and low output noise. The ADR45xx Voltage References feature a core topology that delivers high accuracy as well as industry-leading noise performance and temperature stability. The voltage references improve system accuracy over time and temperature variations with its low thermally induced output voltage hysteresis and low long-term output voltage. With a maximum operating current of 950μA, the ADR45xx series is well suited for use in portable equipment. Analog Devices Inc. ADR45xx Voltage References are available in a wide range of output voltages with an extended industrial temperature range of -40°C to +125°C.
Features
- 2ppm/°C maximum temperature coefficient (TCVOUT)
- 0.1Hz to 10Hz output noise
- Less than 1.μVp-p at VOUT of 2.048V typ.
- ±0.02% maximum initial output voltage error
- 3V to 15V input voltage range
- -40°C to +125°C operating temperature range
- +10mA source / -10mA sink output current
- 950μA (maximum) quiescent current
- 300mV at 2mA (VOUT≥3V) dropout voltage
- SOIC-8 package
Applications
- Precision data acquisition systems
- High-resolution data converters
- High-precision measurement devices
- Industrial instrumentation
- Medical devices
- Automotive battery monitoring
Related Products
Analog Devices Inc. ADR44x XFET Voltage References
Ultra-low noise, LDO XFET® Voltage References with Current Sink and Source.
Analog Devices Inc. AD7386 4-Channel, 4 MSPS, 16-Bit SAR ADC
Dual simultaneous sampling and high-speed ADC that operates from a 3V to 3.6V power supply.
Analog Devices Inc. AD74115 Single-Channel Configurable A/D Converters
Single-ch, software-configurable input & output devices built for industrial control applications.
Associated Boards
Analog Devices Inc. EVAL-AD7606CFMCZ Evaluation Board
Allows users to evaluate the features of the AD7606C-18 & AD7606C-16 analog-to-digital converters.
Analog Devices Inc. CN0577 Analog Front End/Digital Interface
18-bit, 15 MSPS, 2ppm linear data acquisition system with an easy-to-drive input impedance of 1.1kΩ.
Associated Solution
Analog Devices Inc. Lithium Ion Battery Formation & Test Solutions
Small, environmental friendly system for testing and formation rechargeable battery cells & packs.
