Analog Devices Inc. ADRF5545A-EVALZ Evaluation Board

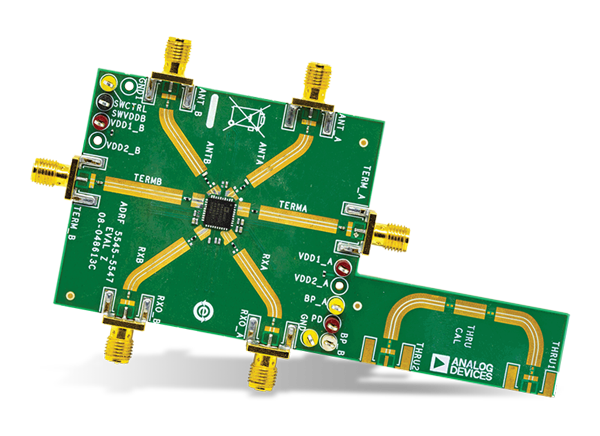

Analog Devices ADRF5545A-EVALZ Evaluation Board is designed to help evaluate the features and performance of the ADRF5545A. The ADRF5545A is a dual-channel integrated radio frequency (RF) front end ideally suited for time-division duplexing (TDD) wireless infrastructure applications. The ADRF5545A is a multichip device that consists of a high power switch and a dual-stage low noise amplifier on each channel.
Features
- Full-featured evaluation board for the ADRF5545A
- Easy connection to test equipment
- Matching network for 2.6GHz and 3.6GHz
- Thru line for calibration
Required Equipment
- DC power supply
- Signal generator
- Spectrum analyzer
- Network analyzer
Associated Product
Analog Devices Inc. ADRF5545A RF Front-End Multichip Module
Designed for time-division duplexing (TDD) applications that operate from 2.4GHz to 4.2GHz.
Test Setup
Published: 2019-10-02
| Updated: 2022-03-10
