Analog Devices Inc. ADuM7701 Evaluation Board

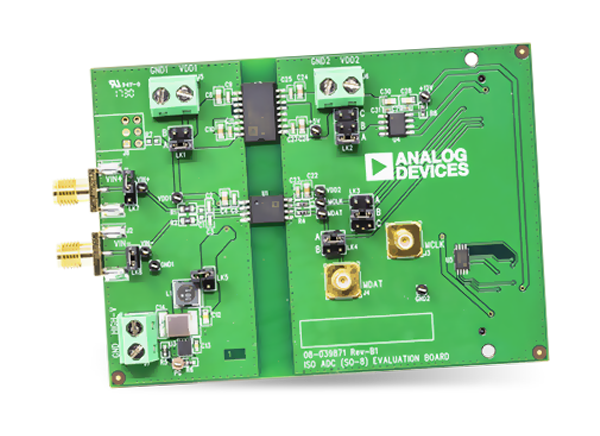

Analog Devices Inc. ADuM7701 Evaluation Board is a fully featured evaluation board that evaluates all the features of the ADuM7701 isolated Analog-to-Digital Converter (ADC). This evaluation board incorporates onboard power supplies and standalone capability. The ADuM7701 evaluation board is compatible with the SDP-H1 controller board. This evaluation board is controlled by the SDP-H1 via the J9 connector through the USB port of the PC using the Analysis Control Evaluation (ACE) software. The ADuM7701 evaluation board comes with onboard ADuM6000 isoPower dc-to-dc converter, ADP2360ACPZ-5.0 high-efficiency buck regulator, and ADP7104ARDZ-5.0 LDO regulator.
Features
- Fully featured evaluation board
- Evaluates ADuM7701 isolated ADC
- Compatible with the SDP-H1 controller board
- Standalone capability
- PC-based ACE software for control and data analysis
- Onboard modules:
- ADuM6000 isoPower dc-to-dc converter
- ADP2360ACPZ-5.0 high-efficiency buck regulator
- ADP7104ARDZ-5.0 Low-Dropout Regulator (LDO)
Kit Contents
- EV-ADuM7701-8FMCZ evaluation board
- ACE software download instructions
Block Diagram
Connection Diagram
Associated Products
Analog Devices Inc. ADuM7701 16-Bit, Isolated Sigma-Delta Modulators
Converts an analog input signal into a single-bit data stream, with on-chip digital isolation.
Analog Devices Inc. ADP2360 High-Efficiency Buck Regulators
50mA, 60V, high input voltage, DCM synchronous, step-down, DC-DC switching regulators.
Analog Devices Inc. ADP7104 LDO Linear Regulators
20V, 500mA, Low Noise, CMOS LDO Regulators.
