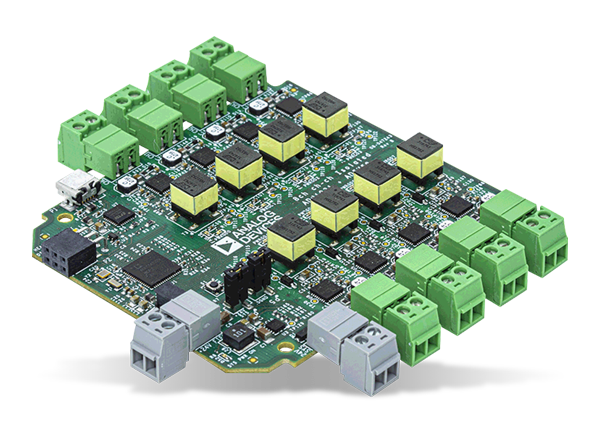

Analog Devices Inc. DEMO-AD5758-AO8Z Demonstration Board

Analog Devices DEMO-AD5758-AO8Z Demonstration Board demonstrates a system-level concept where the AD5758 and the ADP1031 are used together. These devices are combined to implement a compact, eight-channel, channel-to-channel isolated, analog output (AO) module. The module is designed to dissipate less than 2W worst-case power dissipation over a wide range of operating conditions. The purpose of this board is to demonstrate how a system-level approach allows a compact low power solution to be developed. For bench and performance evaluation, please use the EVAL-AD5758DZ and the ADP1031CP-EVALZ evaluation kits.
