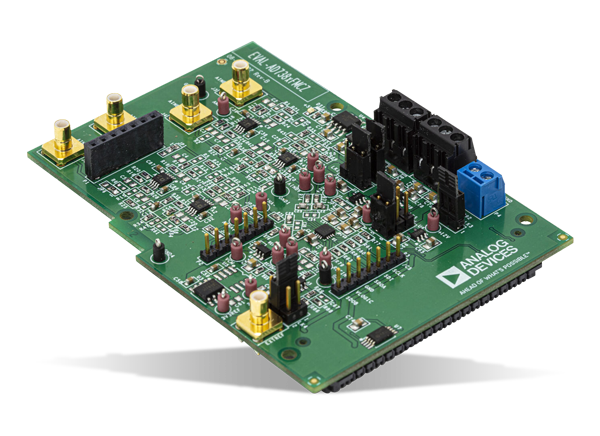

Analog Devices Inc. EVAL-AD7386FMCZ Evaluation Board

Analog Devices EVAL-AD7386FMCZ Evaluation Board is a full-featured evaluation board designed to evaluate all the features of the AD7386 analog-to-digital converter (ADC). The evaluation board can be controlled by the EVAL-SDP-CH1Z via the 160-way system demonstration platform connector, P7. The EVAL-SDP-CH1Z board controls the evaluation board through the USB port of the PC using the Analysis Control Evaluation (ACE) software. The EVAL-AD7386FMCZ can evaluate the AD7387 and AD7388 by using the AD738x ACE plugin. The only difference is the number of SCLKs that clock out the conversion results, which is dependent on the resolution for each generic.


  • Full-featured evaluation board multichannel, simultaneous sampling ADC
  • Onboard reference, reference buffer, and ADC driver
  • Onboard power supplies
  • Board-compatible high-speed system demonstration platform (EVAL-SDP-CH1Z (SDP-H1)) controller
  • PC software for control and data analysis

Block Diagram

Block Diagram - Analog Devices Inc. EVAL-AD7386FMCZ Evaluation Board
Published: 2019-12-05 | Updated: 2022-03-10
