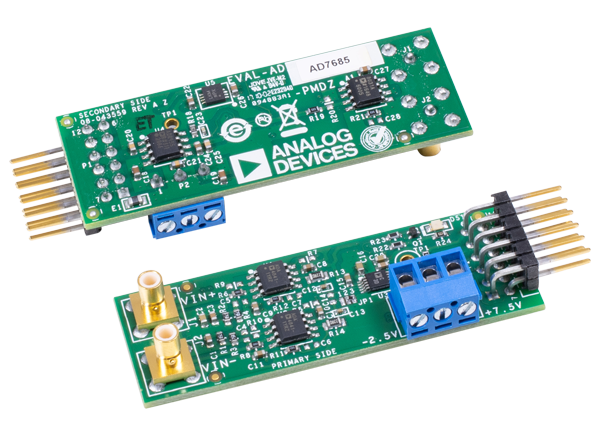

Analog Devices Inc. EVAL-AD7685-PMDZ Evaluation Board
Analog Devices Inc. EVAL-AD7685-PMDZ Evaluation Board with the PMOD compatible form factor helps designers evaluate the the AD7685 16-Bit PulSAR ADC. The EVAL-AD7685-PMDZ operates in standalone mode or in conjunction with the System Development Platform.
When operated with the System Development Platform software, EVAL-AD7685-PMDZ enables the designer to perform detailed analysis of the AD7685's performance. When operated in standalone mode the break out board is recommended for access to various control pins.
Associated Eval Board
Analog Devices Inc. AD7685 16-Bit PulSAR ADCs
16-Bit, 250kSPS successive approximation PulSAR ADCs using a single power supply in MSOP/QFN.
Published: 2014-07-31
| Updated: 2022-03-11
