Analog Devices Inc. EVAL-AD7902 Evaluation Kit
Analog Devices Inc. EVAL-AD7902 Evaluation Kit is designed to demonstrate the performance of the AD7902 Analog-to-Digital Converter (ADC). This kit features versatile analog signal conditioning circuitry, onboard reference buffers, ADC drivers, and system demonstration board capability. The following onboard components include ADR435 high precision, buffered band-gap 5V reference, ADA4841-1: signal conditioning circuit with op-amps, and ADP7104 and ADP2301 regulators.
Features
- Full featured evaluation board for the AD7902
- Versatile analog signal conditioning circuitry
- On-board reference, reference buffers, and ADC drivers
- System demonstration board compatible (EVAL-SDP-CB1Z)
- PC software for control and data analysis of time and frequency domain
Kit Contents
- EVAL-AD7902SDZ evaluation board
- Wall power supply 9V DC adapter
- Daughter card power connector

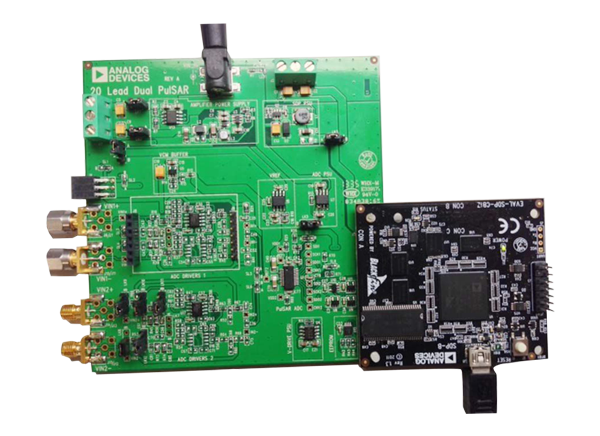

Typical Setup
Block Diagram
Associated Product
Analog Devices Inc. AD7902 Analog to Digital Converter
Dual 16-bit, successive approximation ADC that operates from a single power supply, VDDx, per ADC.
Published: 2019-10-22
| Updated: 2022-03-10
