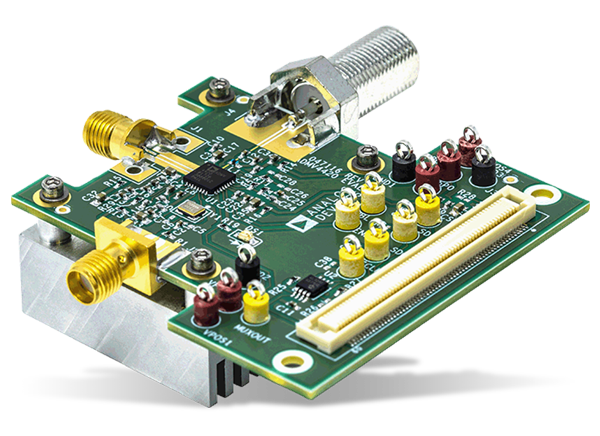

Analog Devices Inc. ADMV4420 K Band Downconverter Evaluation Board is used to evaluate the ADMV4420 K Band Downconverter. Analog Devices ADMV4420 is a highly integrated, double-balanced, active mixer with an integrated fractional-N synthesizer. The board features an onboard SDP-S connector for SPI control, 5V operation, and an ACE software interface for SPI control.
Full-featured evaluation board for the ADMV4420
Onboard SDP-S connector for SPI control
ACE software interface for SPI control
Analog Devices Inc. ADMV4420 K Band Downconverter
A highly integrated, double balanced, active mixer with an integrated fractional-N synthesizer.
