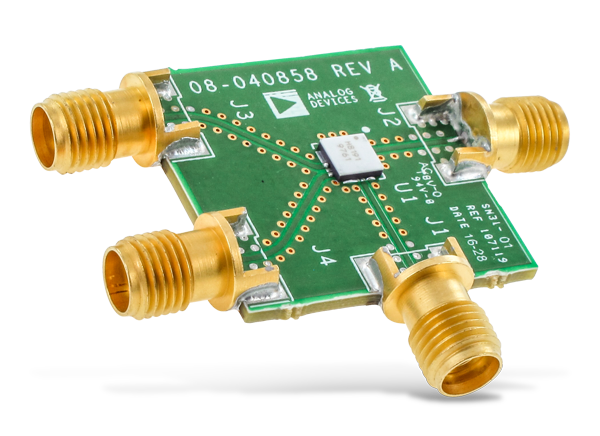

Analog Devices Inc. EVAL-HMC8191/3 Evaluation Boards are used to evaluate the HMC8191/2/3 I/Q Mixers. The evaluation board's PCB is a 4-layer Rogers 4350B. The signal lines are 50Ω impedance for connection and matching to the package. Analog Devices Inc. EVAL-HMC8191/3 Evaluation Boards do not require any power supply or USB connection.
Analog Devices Inc. HMC8191 & HMC8193 I/Q Mixers
Housed in surface mount packages for use with standard surface mount processes.
