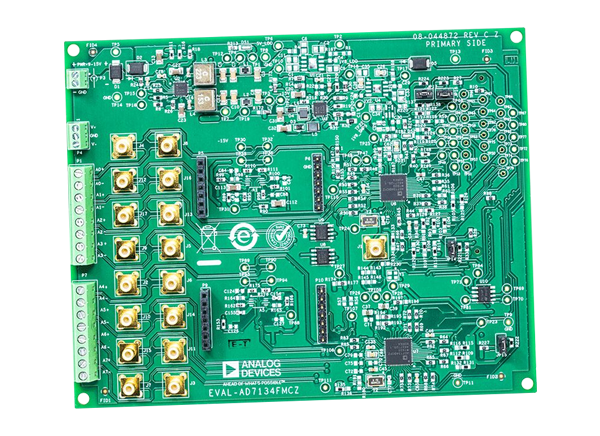

Analog Devices Inc. EVAL-AD7134FMCZ Evaluation Board
Analog Devices Inc. EVAL-AD7134FMCZ Evaluation Board provides a demonstration platform for the AD7134 Quad-Channel Precision Analog-to-Digital Converter (ADC). The AD7134 is a 24-bit, 4-channel, simultaneous sampling, 1.5 MSPS, precision alias-free ADC in an LFCSP56 package. The EVAL-AD7134FMCZ includes two pre-mounted AD7134 ADCs, enabling the Evaluation Board to demonstrate multi-device simultaneous sampling.
The EVAL-AD7134FMCZ Evaluation Board is designed to connect to the EVAL-SDP-CH1Z High-Speed Controller Board, which in turn connects to a PC via a USB 2.0 high-speed port. The EVAL-SDP-CH1Z Board also provides power to the EVAL-AD7134FMCZ.
The AD7134 evaluation software running on a PC provides full accessibility to the AD7134 device register map, as well as a data analysis interface to display key parameters and graphics from the conversion result in both time and frequency domains.
Features
- Fully featured evaluation board for the AD7134
- PC control in conjunction with the EVAL-SDP-CH1Z Board
- PC software control and data analysis
- Standalone hardware capability
- Two AD7134 ADCs to demonstrate multi-device simultaneous sampling
Required Equipment
- SDP-H1 board
- DC or AC signal source (audio precision or a similar high-performance signal source)
- PC running Windows® with a USB 2.0 port and the evaluation tool installed
- AD7134 evaluation software, available from ADI
Supported Products
Analog Devices Inc. AD7134 4-Channel Precision ADC
Precision analogue-to-digital converter that delivers on functionality, performance, and ease of use.
Related Development Tools
Analog Devices Inc. EVAL-SDP-CH1Z High-Speed Controller Board
High-speed controller board for the Analog Devices System Demonstration Platform (SDP).
Setup Example
