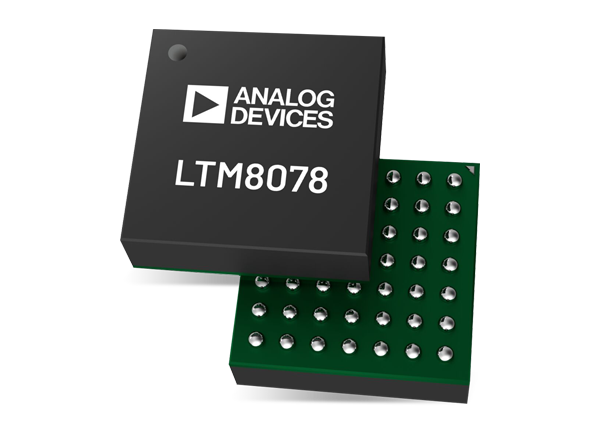

Analog Devices Inc. LTM8078 40VIN Silent Switcher® µModule® Regulator

Analog Devices Inc. LTM8078 Silent Switcher® μModule® Regulator is a 40VIN, dual 1.4A/single 2.8A step-down device. The Silent Switcher architecture minimizes EMI and delivers high efficiency at frequencies up to 3MHz. The controllers, power switches, inductors, and support components are included. The LTM8078 operates over a wide input voltage range, and supports output voltages from 0.8V to 10V. The switching frequency range operates from 300kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.


  • Two Complete Step-Down Switching Power Supplies
  • Low Noise Silent Switcher® Architecture
  • CISPR22 Class B Compliant
  • Wide Input Voltage Range: 3V to 40V
  • Wide Output Voltage Range: 0.8V to 10V
  • Multiphase Parallel Operation to Increase Current
  • Selectable Switching Frequency: 300kHz to 3MHz
  • Compact Package (6.25mm × 6.25mm × 2.22mm) Surface Mount BGA
  • 1.4A Continuous Output Current per Channel at 24VIN, 3.3VOUT, TA = 85°C


  • Automated Test Equipment
  • Distributed Supply Regulation
  • Industrial Supplies
  • Medical Equipment

Typical Applications

Application Circuit Diagram - Analog Devices Inc. LTM8078 40VIN Silent Switcher® µModule® Regulator
Published: 2019-12-19 | Updated: 2022-03-11
