Analog Devices Inc. Voyager 3 Wireless Vibration Monitoring Platform

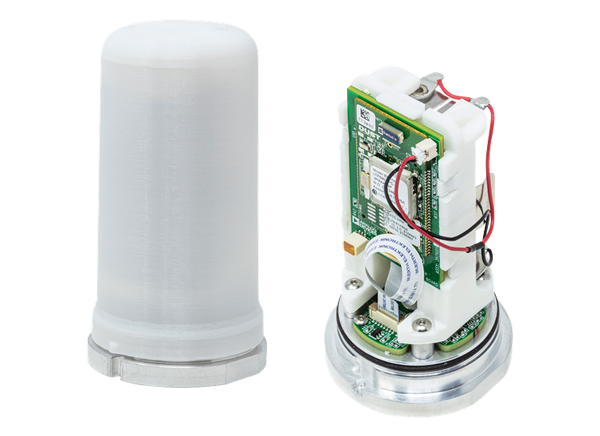

Analog Devices Inc. Wireless Vibration Monitoring Platform is a system evaluation solution for a wireless signal chain for MEMS-accelerometer-based vibration monitoring. The ADI Platform system solution includes mechanical attach, hardware, firmware, and PC software to enable rapid deployment and evaluation of a three-axis vibration monitoring solution.

The module can be directly attached to a motor or fixture via a ¼-28 stud. The device can also be combined with other modules on the same wireless mesh network to provide a broader picture with multiple sensor nodes as part of a Condition Based Monitoring (CbM) system.

The EV-CBM-VOYAGER3-1Z Evaluation Kit includes a wireless module, SmartMESH manager, and programming board/JTAG.

The EV-CBM-VOYAGER3-2Z Evaluation Kit includes the wireless module and batteries only.


  • Mechanical mounting and measurement capability up to 2.6kHz bandwidth
  • 3-axis ultra-low power, ultra-low noise MEMS accelerometer technology
  • Low power 16-bit ADC
  • Ultra low power microcontroller and robust low power SmartMESH wireless radio

Kit Contents

  • SmartMesh IP Manager (DC2274A) USB Dongle
  • Wireless Vibration Monitoring Platform
  • JTAG Cable (only needed for firmware upgrade)
  • Programing board (only needed for firmware upgrade)
