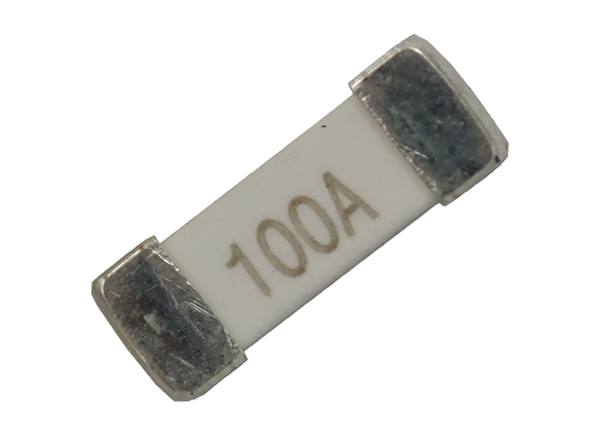

Bel Fuse 0ACH Fast Acting High Current Brick Fuses are automotive qualified, square, surface mount, fast-blow fuses. The 4818 sized fuses measure 4.5mm x 4.5mm x 12.3mm and feature a ceramic body with silver-plated copper caps. Operating within a -40°C to +125°C temperature range, the 0ACH fuses also offer a 60A to 100A current rating range, a voltage rating of 125VAC/72VDC, and a 1kA interrupt rating. The 0ACH Fast Acting High Current Brick Fuses from Bel Fuse are ideal for high-performance battery systems, routers, blade servers, and other surface mount designs with space constraints.
Fast-acting high current brick fuse, fast-blow fuse type
Surface mount design to save space, 4818 size
Ceramic square body with end cap design
Wide operating temperature range
Tape and reel for auto-insert SMD process
Designed to UL248-1, 248-14
Full compliance with EU Directive 2011/65/EU and amending directive 2015/863
