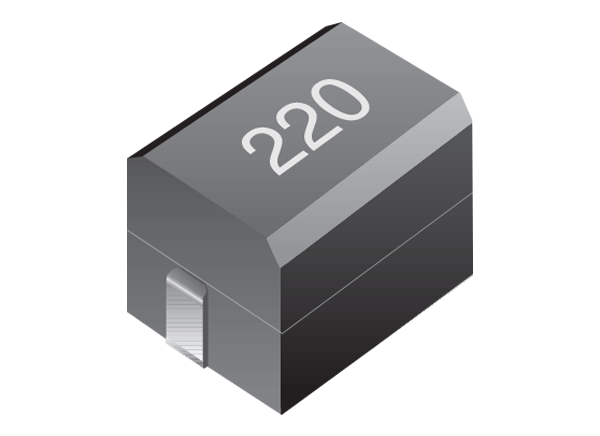

Bourns CC322522A AEC-Q200 Compliant Chip Inductors

Bourns CC322522A AEC-Q200 Compliant Chip Inductors are wound on a ferrite core that provides low DC resistance and high rated current. Encapsulation construction allows these Bourns inductors to retain high resistance to heat, humidity, mechanical shock, and pressure. Bourns CC322522A Chip Inductors comply with the AEC-Q200 standard and operate over a -40°C to +150°C temperature range. These inductors are ideal for use in RF signal processing, resonant circuits, filters, and low power management applications for cable modems, set-top boxes, cell phones, and other mobile electronics.

Features

  • High rated current
  • High resistance to heat and humidity
  • Resistance to mechanical shock and pressure
  • Accurate dimensions for automatic placement
  • AEC-Q200 compliant
  • RoHS compliant

Applications

  • RF signal processing
  • Resonant circuits and filters
  • Low power management applications
    • Cable modems
    • Set-top boxes
    • Cellular phones
    • Tablets
    • Mobile electronic devices

Specifications

  • 1μH to 100μH inductance
  • 8MHz to 100MHz self-resonant frequency
  • -40°C to +150°C operating temperature range
  • 0.15A to 1.35A rated current
  • 3.2mm x 2.5mm x 2.2mm dimensions
