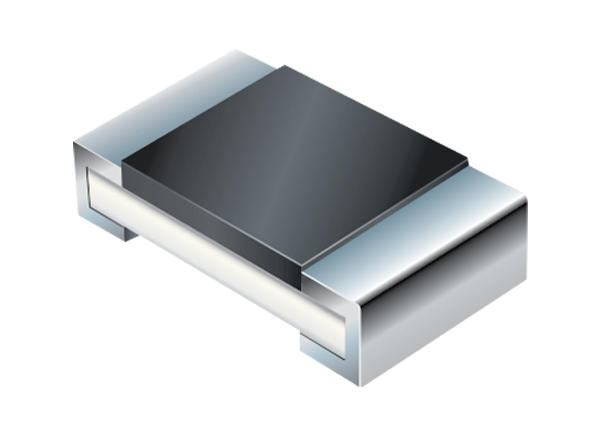

Bourns CR01005 01005-Size Thick Film Chip Resistors
Bourns Model CR01005 Series 01005-Size Thick Film Chip Resistors meet the current downsizing market trend and are sulfur-resistant. The extra small 01005 (0402) CR01005 series has a power rating of 0.03W at 70°C and a resistance range of 10Ω to 1MΩ. A three-layer termination process with a nickel barrier helps prevent leaching and provides excellent solderability. Bourns Model CR01005 Series 01005-Size Thick Film Chip Resistors applications include mobile devices, consumer electronics, industrial automation, power supplies, LED lighting, and communication base stations.
Features
- 0.03W power rating at 70°C
- Tight tolerance of bottom electrode width
- Three-layer termination process with nickel barrier helps prevent leaching and provides excellent solderability
- 1% and 5% tolerance options
- Tape and reel packaging
- RoHS compliant
Applications
- Mobile devices
- Consumer electronics
- Industrial automation
- Power supplies
- LED lighting
- Communication base stations

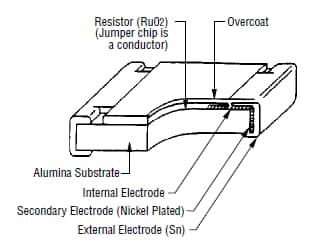

Construction
Published: 2020-05-04
| Updated: 2022-03-11
