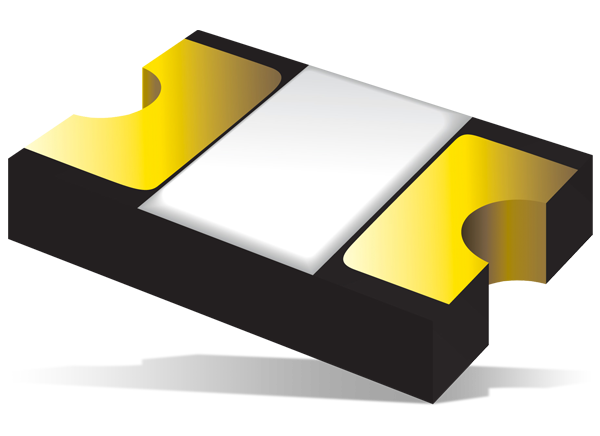

Bourns MF-ASML/X Low-Resistance PPTC Resettable Fuses are designed to protect against both overcurrent and overtemperature events within the designated specifications. The tiny 0402 footprint size makes these devices ideal for space-constrained mobile applications such as battery charging and USB port protection. The series provides Ihold current ratings of 0.1A, 0.2A, 0.35A, and 0.5A at the 6V maximum rated voltage. These devices utilize a proprietary freeXpansion™ design that increases the performance of the resettable fuse with higher hold currents, higher voltages, improved resistance stability, and a smaller footprint. Bourns MF-ASML/X Low-Resistance PPTC Resettable Fuses have post-trip resistance values as low as 0.5Ω and initial resistance values as low as 0.04Ωm, helping boost the current carrying capability.
Tiny footprint size (0402) and low profile for space-constrained mobile applications
Ultra-low resistance, quick response
0.1A, 0.2A, 0.35A, and 0.5A Ihold current rating
UL, CUL, and TÜV agency recognition
Battery and charging protection for mobile phones
USB port protection
Game console port protection
Plug-and-play protection for PC motherboards
Thermal protection for wearables, Li-ion, and polymer battery packs
Bourns Multifuse® PTC Resettable Fuses
Polymeric or ceramic PTCs in surface-mount, through-hole, or strap-mount configurations.
