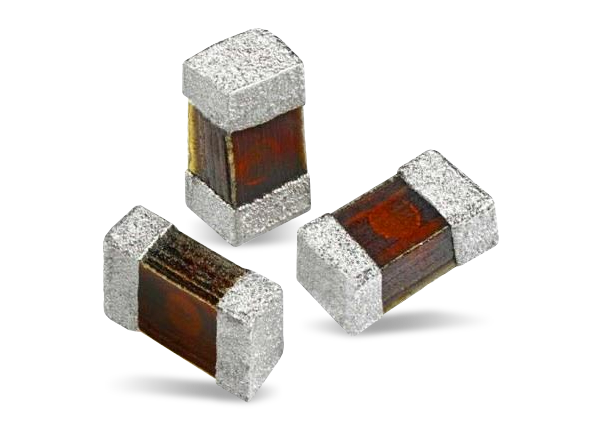

Bussmann / Eaton 0402ESDA-AEC Automotive Grade ESD Suppressor

Bussmann / Eaton 0402ESDA-AEC Automotive Grade ESD Suppressor is AEC-Q200 qualified and provides ultra-low capacitance (0.05pF) for high-speed data applications. The 0402ESDA-AEC suppressor provides protection with a fast response time (less than 1ns), allowing equipment to pass IEC 61000-4-2 Level 4 test. Bussmann / Eaton 0402ESDA-AEC Automotive Grade ESD Suppressor is a compact (0402), single-line, bidirectional device with a low leakage current of less than 0.1nA typical for reduced power consumption.

Features

AEC-Q200 qualified
Ultra-low capacitance (0.05pF) ideal for high-speed data applications
Provides ESD protection with fast response time (less than 1ns), allowing equipment to pass IEC 61000-4-2 Level 4 test

Single-line, bidirectional device
Low leakage current (less than 0.1nA typical) reduces power consumption
0402 (1005 metric) compact design utilizes less board space

Applications

Infotainment and Telematics
- In-vehicle infotainment and navigation
- Audio subsystems
- USB and Ethernet hubs
- Active noise cancellation (ANC)
High-Speed Data Ports and Interfaces
- RF antennas
- Ethernet
- USB
- HDMI

Satellite navigation systems
Automotive Body Electronics
- Central body control unit
- Vehicle access control systems
Advanced Driver Assistance Systems
- Rear- and front-view cameras
- Automatic parking control
- Adaptive cruise control (ACC)
