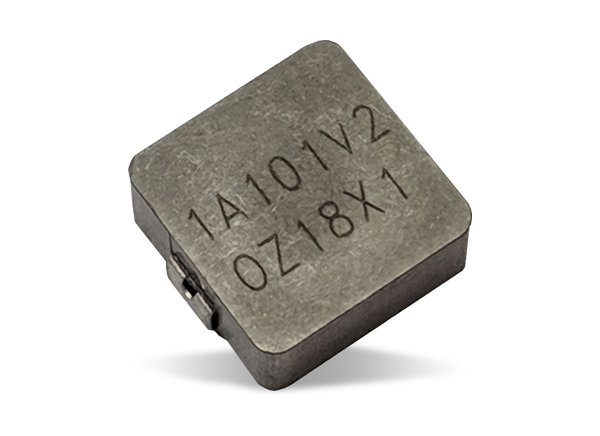

Coiltronics / Eaton HCM1A1104V2 Automotive Grade High Current Power Inductors feature an inductance range of 0.20μH to 68μH and an SMT footprint of 11.2mm x 10.3mm with a 4mm height. These inductors use an advanced molded construction design for high current handling capabilities and low core loss. The HCM1A2213V2 series offers improved thermal dissipation characteristics, superior mechanical strength, and stability over the operating temperature range. The components are magnetically shielded for low EMI. Coiltronics / Eaton HCM1A1104V2 Automotive Grade High Current Power Inductors are engineered to meet automotive electronics power and thermal handling requirements. The series is AEC-Q200 Automotive Grade 1 compliant.
High current carrying capacity
Magnetically shielded, low EMI
DC-DC converter applications up to 1MHz
Filtering applications up to self-resonant frequency (SRF)
0.20μH to 68μH inductance range
2.2A to 60A current range
11.2mm x 10.3mm surface-mount package with 4mm height
Moisture sensitivity level (MSL) 1
Alloy powder core material
Advanced driver assistance systems (ADAS)
Infotainment and cluster electronics
Chassis and safety electronics
Engine and powertrain systems
Coiltronics / Eaton HCM1AV2 Automotive High-Current Power Inductors
Designed to meet automotive electronics power and thermal handling requirements.
