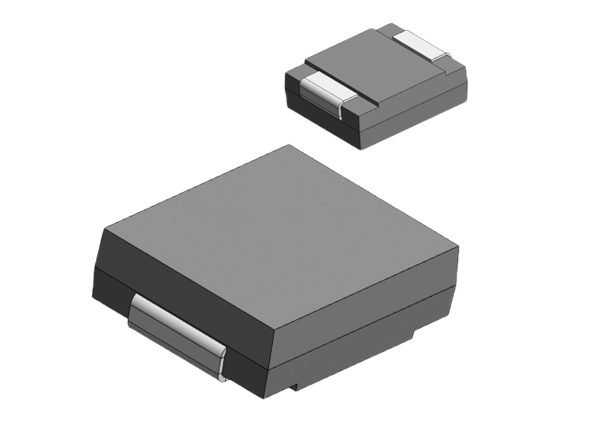

Eaton SMAJxxH Automotive TVS Diodes are AEC-Q101 qualified and offer a peak power rating of 400W at 4.3A to 23.5A current range. These diodes feature low inductance, low leakage current, and excellent voltage clamping capability. The SMAJxxH diodes leverage a V-Groove interlock and dimple design that offers high reliability. These TVS diodes are available in a broad range of footprints designed with the DO-214AC package. The SMAJxxH diodes operate from 5V to 58V voltage range and -55°C to 150°C temperature range. Typical applications include networking systems and body electronics, ADAS and safety systems, automotive lighting, and battery management systems.
400W peak power rating
4.3A to 23.5A peak current range
Low leakage current
Excellent voltage clamping capability
5V to 58V reverse standoff voltage range
-55°C to 150°C temperature range
Communication and infotainment systems
Networking systems and body electronics
Advanced Driver Assistance Systems (ADAS) and safety systems
Battery management systems
