Infineon Technologies EZ-PD™ PMG1-B1 USB Type-C™ High-Voltage MCUs

Infineon Technologies EZ-PD™ PMG1-B1 USB Type-C™ High-Voltage MCUs are highly integrated single-port USB-C Power Delivery (PD) solutions with integrated buck-boost controllers. These controllers come with integrated gate drivers for VBUS NFET on the consumer path for sink application and hardware-controlled protection features on the VBUS. The EZ-PD PMG1-B1 feature 4V to 24V input voltage range with 40V tolerance and 150kHz to 600kHz programmable switching frequency in an integrated PD solution. These microcontrollers support an on-chip 32-bit Arm® Cortex®-M0 processor, 128-KB flash, 16-KB RAM, and 32-KB ROM that leaves most flash available for user application use. Typical applications include cordless power tool chargers, wireless speakers, VR/AR goggles, and portable electronics.


  • USB-PD
    • Supports one USB-PD port
    • Supports latest USB-PD 3.1
    • Extended data messaging
  • Type-C
    • Configurable resistors RP and RD
    • VBUS NFET gate driver
    • Integrated 100mW VCONN power supply and control
  • Supports selectable Pulse Skipping Mode (PSM) and Forced Continuous Conduction Mode (FCCM)
  • Supports soft start
  • Programmable spread spectrum frequency modulation for low EMI
  • Supports current sensing for constant current control
  • Clocks and oscillators
    • Integrated oscillator eliminating the need for an external clock
  • System-level fault protection
    • VBUS Overvoltage Protection (OVP) and Undervoltage Protection (UVP)
    • VBUS to CC short protection
    • VOUT UVP, OVP, and OCP
    • Supports over-temperature protection through an integrated ADC circuit and internal temperature sensor
    • Supports connector and board temperature measurement using external thermistors
  • Communication interfaces
    • 3 x SCBs (I2C/SPI/UART/LIN)

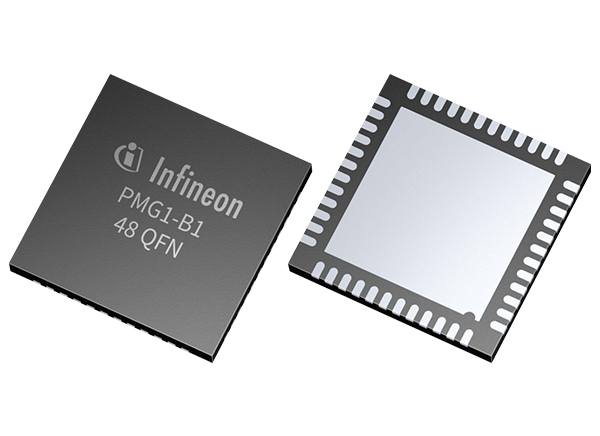

  • 48-pin QFN packages


  • Power supply
    • 4V to 24V input (40V tolerant)
    • 3.3V to 21.5V output voltage range
    • 5V and 75mA integrated LDO capable
    • 3V and 10mA standby regulator
  • 32-bit MCU subsystem
    • 48MHz Arm® Cortex®-M0 CPU
    • 128KB Flash
    • 16KB SRAM
    • 32KB ROM
  • –40°C to 105°C supports ambient temperature range with 125°C operating junction temperature
  • 1 x legacy/proprietary charging block
    • Supports Apple charging 2.4A and USB BC 1.2
  • Peripherals and GPIOs
    • Up to 21 GPIOs, including two over-voltage GPIOs
    • 2 x 8-bit ADC
    • 8 x 16-bit Timer/Counter/PWMs (TCPWM)
    • 1 x 12-bit ADC
  • 1 x buck-boost controller
    • 150kHz to 600kHz switching frequency
    • 5.5V to 24V input and 40V tolerant
    • 3.3V to 21.5V output


  • Power tools
  • Cordless personal care solutions like electric shavers and hair dryers powered through USB-C
  • Portable battery-powered electronics like smart speakers and cameras
  • Smart home appliances
  • VR/AR goggles

Block Diagram

Block Diagram - Infineon Technologies EZ-PD™ PMG1-B1 USB Type-C™ High-Voltage MCUs

Schematic Diagram

Schematic - Infineon Technologies EZ-PD™ PMG1-B1 USB Type-C™ High-Voltage MCUs
Published: 2023-02-15 | Updated: 2023-09-05
