KYOCERA AVX K Series Clock Oscillators

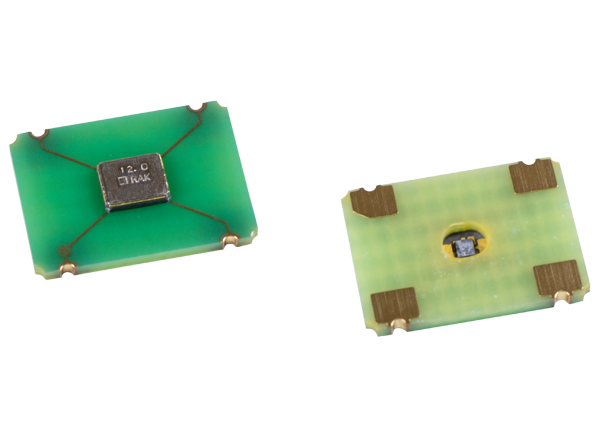

KYOCERA AVX K Series Surface-Mount Clock Oscillators feature CMOS output and 1.5MHz to 80MHz frequency range. The series has a 1.6V to 3.63V wide supply voltage and CMOS output. KYOCERA AVX oscillators utilize a simplified structure with a common sized head unit and changing base substrate to support case sizes from 2016 to 7050, allowing for reduced cycle times. An optional low phase noise version is available.


  • 1.5MHz to 80MHz frequency range
  • CMOS output
  • 1.6V to 3.63V wide supply voltage
  • Integrated materials for all sizes/realized common production line
  • Improved aging characteristics
  • Multi-voltage support / low current consumption
  • Improved phase noise
  • New concept without size concern
Published: 2015-09-16 | Updated: 2023-02-15
