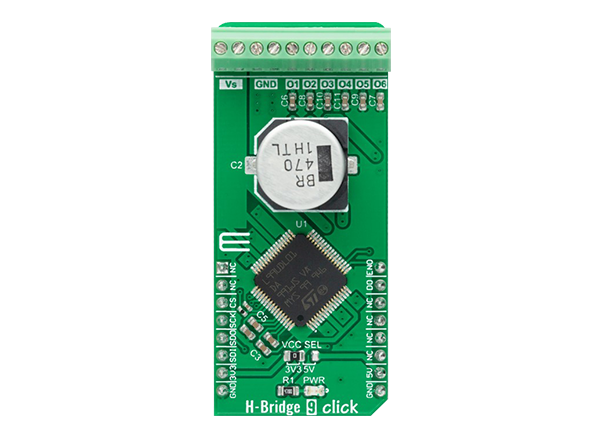

Mikroe H-Bridge 9 Click

Mikroe H-Bridge 9 Click features the STMicroelectronics L99UDL01 six-channel, half-bridge driver, monolithic integrated circuit. It's PWM configurable and current regulated. The L99UDL01 achieves excellent load and line regulation over a wide input supply range up to 18V. These six integrated MOSFET H-bridges are commanded entirely by the SPI interface using duration and current level commands. Complete protection features include open load, short to battery and ground, and load integrity via 10-bit current feedback.

Features

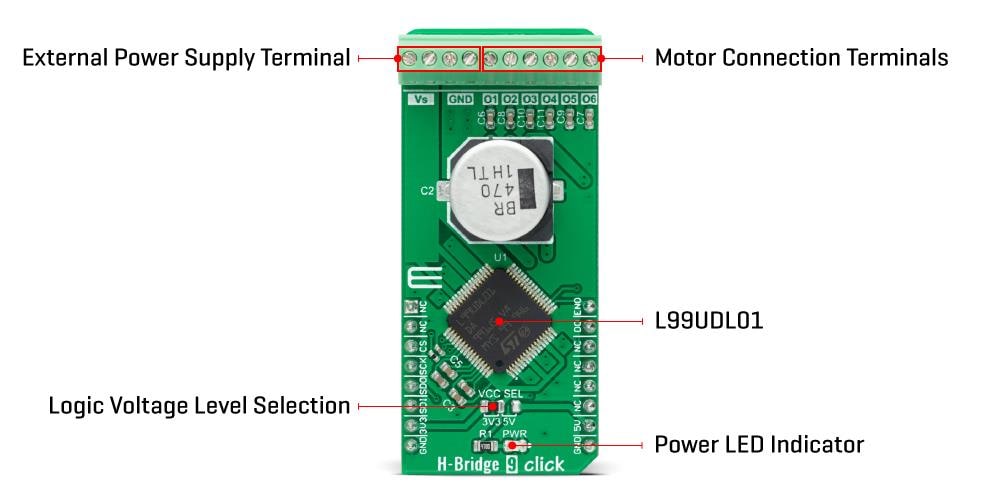

On-board modules
- STMicroelectronics L99UDL01 multiple half-bridge drivers that is PWM configurable and current regulated
Six integrated fully protected half-bridges
Several operational modes
Low power consumption
High level of programming
