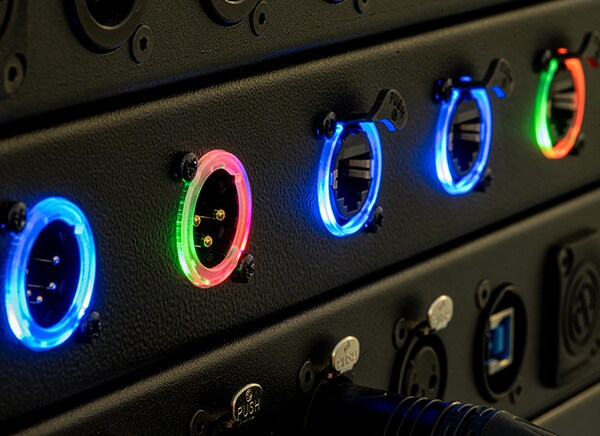

Neutrik etherCON® and XLR Halo Connectors are chassis connectors that incorporate a halo light ring and ESD push tab. These design features provide vertical space savings and allow for standard cutouts in the chassis without the need for additional holes for a standard light pipe. Neutrik Halo Connectors are a true mains connector system with breaking capacity. These connectors provide TOP true outdoor protection and feature IP65 environmental protection. Halo Connectors are ideal for professional audio, video, and lighting.
The NLR-LB Halo Light Barrier minimizes unwanted light bleed (crosstalk) between adjacent halo connectors. This allows the distance between adjacent connectors to be reduced to 25mm.
Provides a halo light ring and ESD push tab
Innovative design provides vertical space savings and allows for standard cutouts in the chassis without the need for additional holes for a standard light pipe
True mains connector system with breaking capacity (CbC)
Single-phase 250VAC 16A (VDE)/250VAC 20A (UL)
Certified according to IEC 60320-1, EN 60320-1, UL 60320-1
TOP true outdoor protection
IP65/enclosure type 4/CV and corrosion-resistant
Available for cable o.d. 6mm to 12mm and 10mm to 16mm
