Crydom / Sensata Dual Panel Mount SSR - Evolution Dual
Crydom introduces the Dual Panel Mount Solid State Relays (SSR) Evolution Dual Series which offers an improved mechanical and thermal design that provides higher capacity outputs (25A & 50A rating per channel @ 40ºC) and significantly increased power density. The Evolution Dual Relays feature 120, 240, and 480VAC operating voltage ratings, 4 to 15, 15 to 32, and 4 to 32VDC control input options, and SCR output for heavy industrial loads. Options available for the Crydom Dual Panel Mount SSR Evolution Dual Series are four input termination, top-bottom or left-right output screw connections, and zero voltage or random turn-on available. Input status LED indicators for each channel are standard. Crydom Dual Panel Mount SSR - Evolution Dual are CE and RoHS compliant, pending UL, and cUL recognition.
Features
- 25A and 50A output rating per channel @ 40ºC
- 120/240 and 480VAC operating voltage rating
- 4-15, 15-32, and 4-32VDC control input options
- Four input termination options available
- Top-bottom or left-right output screw connections available
- Zero voltage or random turn-on available
- SCR output for heavy industrial loads
- Industry-standard panel mount package
- IP20 Protective cover available
- Input status LED indicators for each channel
- CE and RoHS compliant, pending UL and cUL recognition

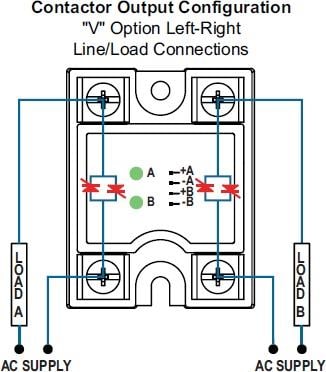

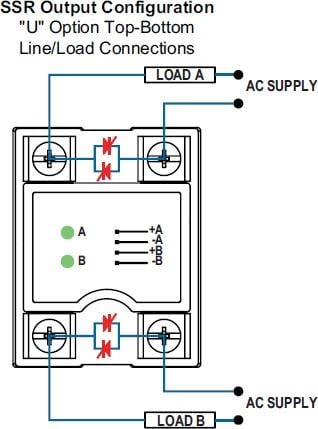

Connections Diagrams
