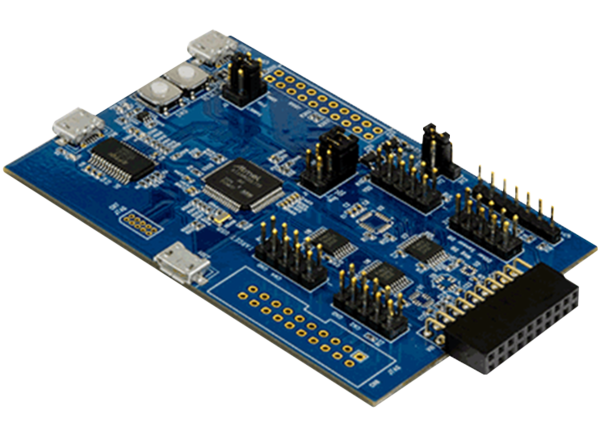

TDK InvenSense DK-UNIVERSAL-I SmartMotion Development Kit
TDK InvenSense DK-UNIVERSAL-I SmartMotion Development Kit is a hardware platform designed around a Microchip SAM G55 microcontroller with 512KB flash. This platform evaluates and develops InvenSense sensor-based solutions. The DK-UNIVERSAL-I platform integrates an onboard embedded debugger, and no external tools are required. This platform includes a GUI-based development tool (Motion Link) and an embedded Motion Driver (eMD) for motion sensors.
Features
- Support for a magnetic sensor with plug-in daughter boards
- Microchip SAM G55 microcontroller with 512KB flash
- On-board embedded debugger (EDBG) for programming and debugging
- Built-in FTDI USB to UART interface for fast motion sensor data transfer
- USB connectors for host interface to software debug and data logging
- Board power supply through USB
- Supports Atmel studio
Block Diagram
Platform Overview
Associated Accelerometer
TDK InvenSense IAM-20381HT 3-Axis Accelerometer
Includes ±2g, ±4g, ±8g and ±16g user-programmable range and on-chip 16-bit ADCs.
Published: 2024-04-08
| Updated: 2024-05-27
