TE Connectivity / Laird External Antennas CFSA69594Px 5G Ceiling Mount DAS Antennas

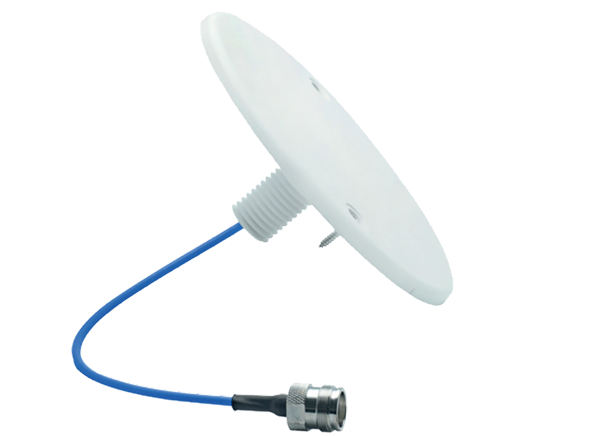

TE Connectivity's / Laird External Antennas CFSA69594Px 5G Ceiling Mount DAS Antennas are low-PIM, indoor, wideband, omnidirectional low-profile devices with Plenum-rated cables. Designed for indoor coverage requirements, these UL 94V-0 antennas provide pattern coverage optimized at 698MHz to 960MHz and 1690MHz to 5925MHz for 5G, 4G/LTE, and older cellular networks. CFSA69594Px DAS antennas are applicable for environments where wide-angle coverage is necessary for a successful wireless deployment while maintaining desired in-building aesthetics.

Features

  • 5G sub-6GHz networks, including C-Band, CBRS, and LAA
  • Ultra-low profile
  • Ultra-low and optimized PIM rating less than -163dBc
  • Mounts directly and easily to a ceiling tile or hard ceilings
  • UL94-V0 flammability rating
  • Radome is paintable using commonly available spray paints (must not contain metal)
  • Plenum-rated cable, UL 444 Standard for Safety: Fire and Smoke
  • RoHS compliant

Specifications

  • Operating frequencies within 698MHz to 5925MHz
  • VSWR ranges
    • <1.2:1 to <1.4:1 average
    • <1.7:1 to <2.5:1 maximum
  • 3.2dBi to 5.6dBi peak gain range, 2.6dBi to 5.4dBi average
  • PIM, 2 x 20W
    • <-163dBc to <-166dBc average range
    • <-150dBc maximum
  • -50Ω nominal impedance
  • 50W maximum power at +25°C (ambient)
  • Linear (horizontal) polarization
  • 360°, omnidirectional azimuth beamwidth
  • 7.6mm height x 180mm diameter
  • 30cm (12") standard cable length
  • Connector options
    • Type N (female)
    • 4.3-10 (female)
  • UL 94V-0, PC (white) radome
  • Ceiling mount (flush mount with screws and anchors)
  • -30°C to +70°C operating temperature range
