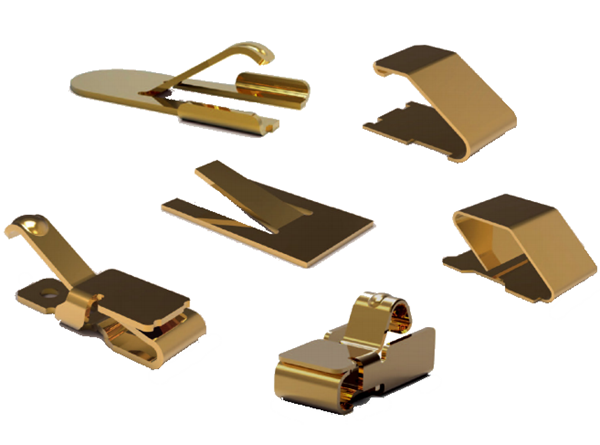

TE Connectivity's (TE) Spring Fingers can be used in all types of small printed circuit board applications across all industries to provide grounding between a device and the PCB. These spring fingers -- also known as shield fingers, grounding springs, or universal ground contacts -- offer s shielding for anything that causes vibrations within a device, such as motors, speakers, and microphones. TE Spring Fingers are available in heights as low as 0.4mm and up to 7mm and accommodate soldering and pick-and-place using standard equipment. Typical applications include mobile phones, wearable devices, game consoles, tablets, patient monitoring devices, POS scanners, security systems, and GPS devices.
Used for grounding between device and PCB
Provides shielding from vibration from motors, antennas, speakers, and microphones
Used as a connection for stacking applications between primary and secondary PCBs
Available in heights as low as 0.4mm and up to 7mm
Requires limited space on a PCB
Accommodates soldering and pick-and-place using standard equipment
Patient monitoring devices
