Terasic Technologies T-Core FPGA MAX 10 Development Board

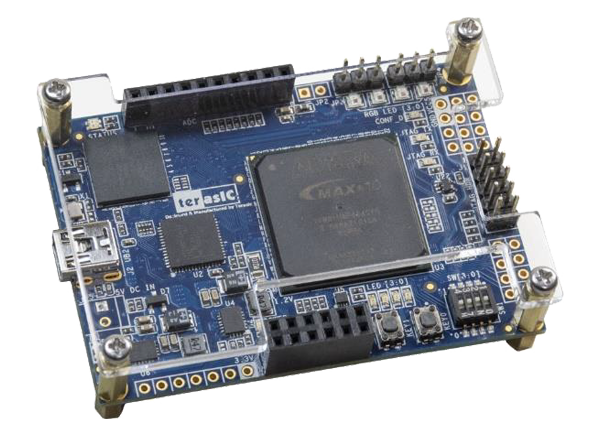

Terasic T-Core FPGA MAX 10 Development Board presents a robust hardware design platform built around the Intel® MAX 10 FPGA. It is well equipped to provide cost-effective, single-chip solutions in control plane or data path applications and industry-leading programmable logic for ultimate design flexibility. With MAX 10 FPGA, you can get lower power consumption/cost and higher performance than the previous generation.

The T-Core development board includes hardware such as onboard USB-Blaster II, QSPI Flash, ADC header, WS2812B RGB LED, and 2x6 TMD expansion header. By leveraging all of these capabilities, the T-Core is the perfect solution for showcasing, evaluating, and prototyping the true potential of the Intel® MAX 10 FPGA. T-Core also supports RISC-V CPU with onboard JTAG debug. It is an ideal platform for learning RISC-V CPU design or embedded system design.

Features

  • FPGA device
    • MAX 10 10M50DAF484C7G device
    • Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
    • 50K programmable logic elements
    • 1,638Kbit M9K memory
    • 5,888Kbits user flash memory
    • 144 18×18 multiplier
    • 4 PLLs
  • User interface
    • Button x2
    • Dip Switch x4
    • Green LED x4
    • RGB LED x4
  • JTAG
    • Onboard USB-Blaster II for programming MAX10
    • Onboard USB-Blaster II for programming RISC-V
    • JTAG master for programming the FPGA on other boards
  • Clock and memory devices
    • Two 50 MHz single-ended, external oscillator clock source
    • One 10 MHz single-ended, external oscillator clock source
    • 64Mb QSPI flash (Store RISC-V Code)
  • Expansion connector
    • 2x6 TMD expansion header
    • 1x10 ADC header
    • Two 1x3 RGB LED expansion header
  • Power supply
    • USB Type mini-AB port (5V)
    • 2-pin external power header (4.4-5.6V)

Applications

  • Protocol bridging
  • Motor control drive
  • Analog to digital conversion
  • Handheld devices

Kit Contents

  • T-Core board
  • Mini USB cable
  • Flat ribbon cable

Block Diagram

Block Diagram - Terasic Technologies T-Core FPGA MAX 10 Development Board
Published: 2020-01-10 | Updated: 2022-03-10
