Vishay / BC Components NTCALUG01T NTC Thermistors

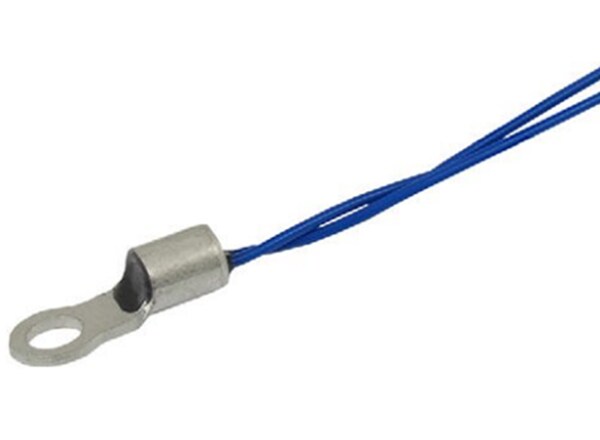

Vishay / BC Components NTCALUG01T NTC Thermistors are standard lug sensors with 150°C long-term stability and RoHS compliance. This AEC-Q200-qualified series offers 10KΩ resistance and rugged construction. The thermistors feature a ring tongue terminal for easy mounting. Vishay / BC Components NTCALUG01T NTC Thermistors are ideal for use in surface-sensing applications, especially ones in which good electrical insulation and good thermal contact with the chassis are required.
Features
- Standard lug sensors with 150°C long-term stability
- 10KΩ resistance at 25°C
- Easy mounting using ring tongue terminal
- Cable with ETFE insulation according to NEMA HP-3, type Z, rated 600VRMS, cable test voltage 3.4kV
- Rugged construction
- AEC-Q200 qualified (grade 1)
- cULus recognized, file E148885 (UL category XGPU2/XGPU8)
- Lead-free versions available
- RoHS compliant
Applications
- Surface sensing
- Automotive equipment
- EV and battery management
- Power electronics and heat sinks
- Consumer appliances
Dimensions (mm)
