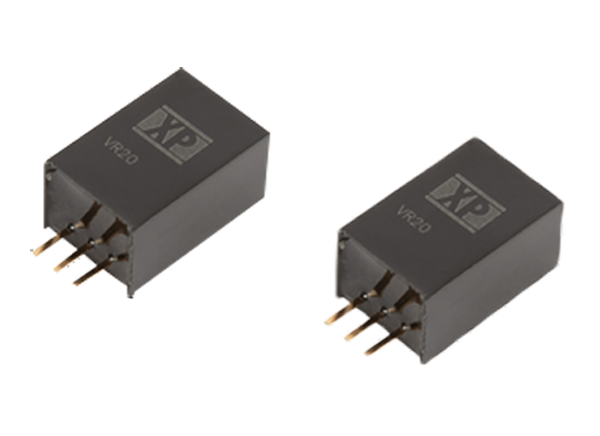

XP Power VRxx Non-Isolated DC-DC Converters

XP Power VRxx Non-Isolated DC-DC Converters are a cost-effective, compact, and efficient regulator solution. The units operate from a wide DC input range of up to 36V. The converters feature non-isolated 0.5A, 1A, and 2A switching regulators and regulated single outputs from 2.5VDC to 15VDC. The series is available in a compact SIP3 package and offers an efficiency of up to 96%. XP Power VRxx Non-Isolated DC-DC Converters have an operating temperature range of -40°C to +85°C and come with a three-year warranty.

Features

  • Non-isolated 0.5A, 1.0A, and 2.0A switching regulators
  • Regulated single outputs from 2.5VDC to 15VDC
  • Wide input range to 36V
  • SIP3 package
  • High efficiency of up to 96%
  • Class B conducted and radiated emissions
  • Short-circuit protection
  • Low 0.1mA to 0.3mA standby input current
  • -40°C to +85°C operating temperature range
  • >2M hours mean time between failures (MTBF)
  • 3-year warranty

Datasheets

Published: 2020-08-10 | Updated: 2022-03-11
