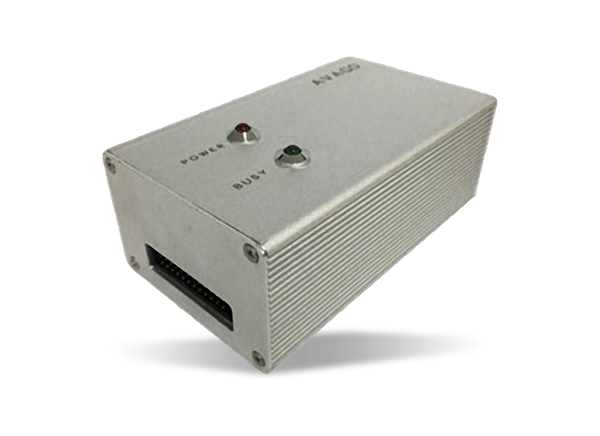

Broadcom HEDS-8988 Magnetic Encoder Programming Kit is designed to program the AEAT-8800-Q24 angular magnetic encoder. This kit configures the encoder for optional incremental zero latency mode which is ideal for applications with low latency requirements. The HEDS-8988 kit includes an IC adapter socket, a programming module, ribbon cable, USB cable, and installation CD.
The HEDS-8988 magnetic encoder programming kit is capable of configuring the optional incremental zero latency mode. This HEDS-8988 programming kit is ideal for applications with constant rotation speed that require low latency applications.

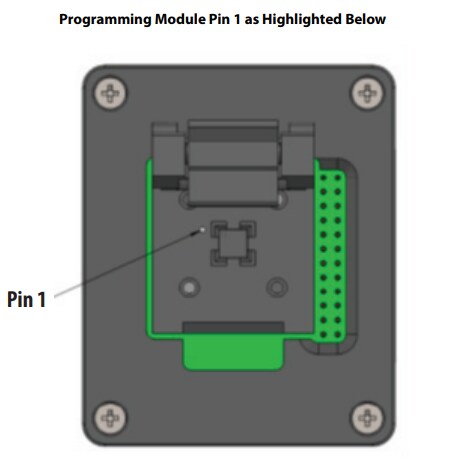

IC adapter socket
24-pin ribbon cable

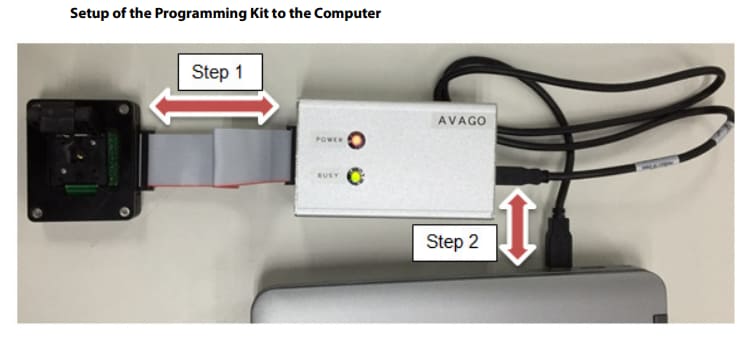

HEDS-8988 Programming Kit Overview
Broadcom AEAT-8800-Q24 Angular Magnetic Encoder
10-16b Encoder IC that provides accurate angular measurement over a full 360° of rotation.
