Harwin Gecko Screw-Lok Connectors

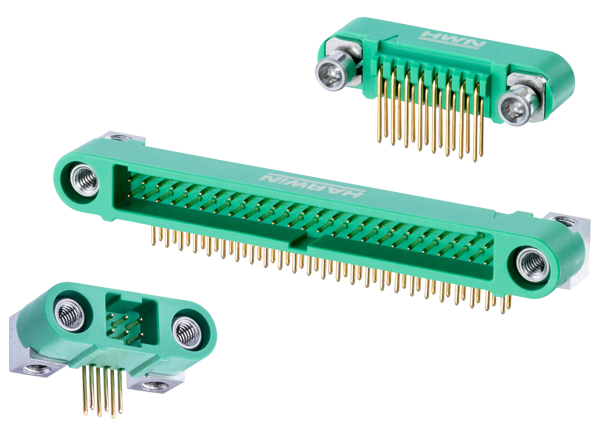

Harwin Gecko Screw-Lok (Gecko-SL) Connectors offer 1.25mm pitch and are available in several variations, including a male through-board connector at right angles to the PCB. This horizontal connector saves space above the PCB by routing the mating cables sideways or joining the PCBs with a 90-degree connection (ideal for motherboard to daughterboard). The horizontal connector is available in pin counts up to 50 and is fully compatible with other Gecko-SL products. Other Gecko-SL connectors include female and male vertical through-hole and surface-mount versions.
Gecko-SL connectors offer female and male vertical through-hole and surface-mount as well as male horizontal through-hole versions. Cable configurations are also available with optional lightweight metal hoods for cable protection and RFI shielding.
Features
- Ruggedized screw fixings for increased security
- Single-piece four-finger beryllium copper contact
- Up to 45% smaller footprint than Micro-D
- Low-outgassing materials meet NASA and ESA requirements
- Current rating
- 2.8A individual
- 2A all contacts simultaneously
- Available Configurations
- Female and male vertical through-hole and surface-mount
- Male horizontal through-hole
- Female and male cables
- Lightweight metal hoods for cable protection and RFI shielding are available
- Horizontal through-board contacts are ideal for board edge-to-cable connection, with reduced total mated height
- 1000 mating cycles
- Long-life for both single-use or high-usage
- Rated to withstand 20g vibration and Z-axis 100g 6m/s shock, with no discontinuity greater than 1µs, Z-axis 100g
- -65°C to +150°C operating temperature range
- Suitable for harsh environments
Applications
- Aviation
- Avionic controls, guidance systems, UAVs, engine controls, radar, and tracking
- Motorsport and transport
- Navigation, AI, GPS and tracking equipment, communications, ERS controls, and telemetry
- Space
- Satellites and CubeSats, radar, communications, and launch systems
- Defense and security
- UAVs, UUV, ground communications, handheld portable equipment, rugged vehicle electronics, and other ROV
- High-end industrial
- Portable equipment, high vibration, and robotics systems

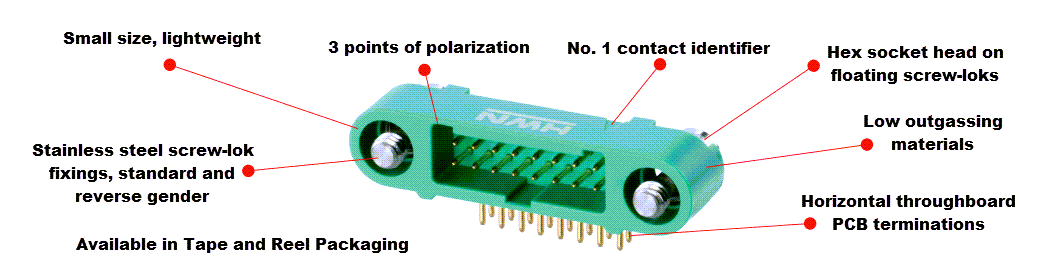

Horizontal Diagram

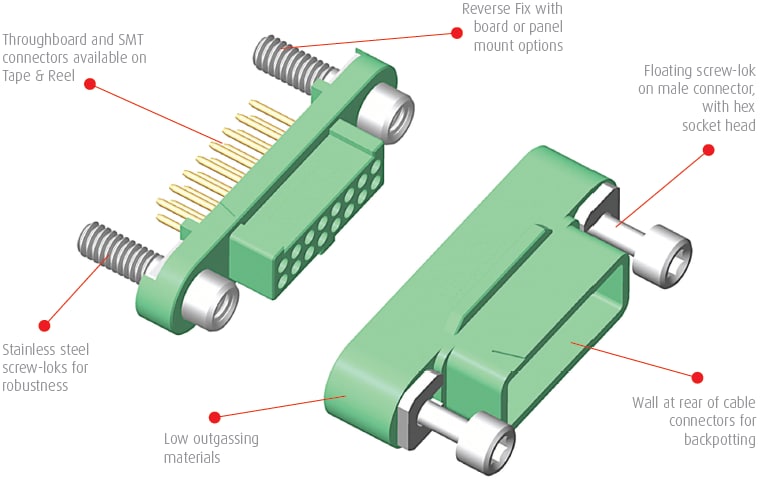

Reverse Fix Diagram
Gecko SL
Videos
Related Connectors
Harwin Latching G125 Gecko Connectors
Low-profile connectors for stacking and cable mating in areas where PCB space is at a premium.
Harwin Gecko Screw-Lok Metal Backshells
Nickel-plated aluminum hood that fits over male or female crimp housing with six to 50 contacts.
Harwin Gecko 1.25mm Pitch High-Reliability Connectors
Offers 1000 mating cycles of durability, 2A per contact for signal, and 10A maximum power options.
Harwin Gecko Screw-Lok Cable Assemblies
Ready to use with choice of pin counts, cable lengths, and single- or double-ended cable connects.
