Mill-Max Pin Receptacles

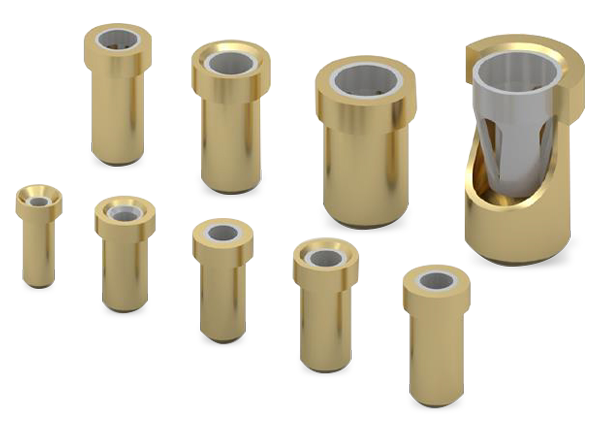

Mill-Max Pin Receptacles, also referred to as PCB sockets, micro-plugs, or connector jacks, are board-level connectors known for their reliability and versatility. The two-piece construction combination of a precision-machined outer shell and a stamped internal finger contact provides flexibility, quality, and reliability for critical applications. Mill-Max Pin Receptacles offer excellent performance under shock and vibration as well as a high mechanical life without degradation from insertion / withdrawal forces.

Features

Two-piece construction consisting of a precision-machined outer shell and a stamped internal beryllium copper contact
Receptacle shell geometries machined to address a variety of termination styles and applications
Shell and contact are individually plated
Wide mating lead diameter acceptance range
Low contact resistance
Gas-tight connection and mating interface

Selection of higher or lower force contacts for the majority of mating pin sizes
Options available for high-temperature applications via beryllium nickel contacts
High mechanical life without degradation of insertion / withdrawal forces
Excellent performance under shock and vibration
