Vishay General Semiconductor eSMP® SMPD Schottky Rectifiers

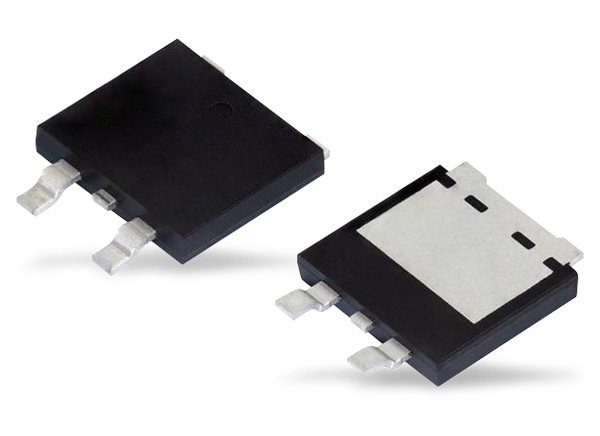

Vishay General Semiconductor eSMP® SMPD Schottky Rectifiers offer 45V-200V devices with a current rating of 10A to 60A. The SMPD rectifiers provide a 0.4V low forward voltage drop at 15A. These Schottky rectifiers offer a low-profile surface-mount package with a typical height of <1.7mm. The SMPD (TO-263AC) package is compatible with the D2PAK (TO-263AB) package. Vishay General Semiconductor eSMP SMPD Schottky Rectifiers are AEC-Q101 qualified, RoHS compliant, and halogen-free devices. Applications include high-frequency DC/DC converters, OR-ing diodes, and automotive applications.
Features
- Trench MOS Schottky technology
- Low profile, typical height of 1.7mm
- Footprint compatible with D2PAK (TO-263AB) package
- Ideal for automated placement
- Low forward voltage drop and low power losses
- High-efficiency operation
- Meets MSL 1 per J-STD-020 and LF maximum peak of 260ºC
- Compliant to RoHS Directive 2011/65/EU
- Halogen free according to JEDEC JS709A standards
Applications
- PC and server power supplies
- High-frequency DC/DC converters
- Freewheeling diodes
- OR-ing diodes
- Reverse battery protection
- UPS, LED, and HID lighting systems
Videos
Additional Resources
Related Products
Vishay Semiconductors eSMP® Package Evolution
Enables higher current and power efficiency with better thermal performance and reliability.
